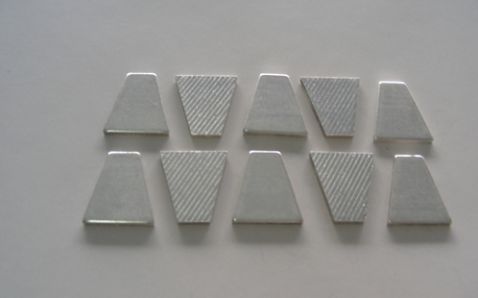

The name of the: AgNi (Environmentally Friendly)
No. : 13
Product description:
Areas of application: Applicable to low current and voltage contactors, automatic switches, precision instruments and relays.
Characteristics of advantages: Good electrical and thermal conductivity, low and stable contact resistance, little and uniform electric wear and tear, less planar material change generates under DC conditions.By using powder sintering extrusion process, the performance of electrical contacts can be improved. Adding a small amount of graphite into silver nickel, composite materials with better performance can be got.
Usually available specificatio
Agreement is available for other specifications of the copper steel:
Product performance:
| Material | Composition % | Density | Resistance | Hardness(HV) |
| Ag | Ni | g/cm3≥ | μΩ.cm≤ | MPa≥ |
| AgNi10 | 90 | 10 | 10.2 | 1.98 | 700-1000 |
| AgNi20 | 80 | 20 | 10 | 2.15 | 800-1100 |
| AgNi30 | 70 | 30 | 9.8 | 2.3 | 800-1200 |
| AgNi40 | 60 | 40 | 9.7 | 2.7 | 800-1200 |
